Discharge Hose

• Materials: Natural Rubber

• Diameter: DN50–1500 (2–60”) as standard

• Length: To Suit Requirements

• Pressure Rating: 10bar to 21bar (145psi to 305psi)

                           Higher On Request

• Temperature: -45°C to +75°C

• End Connections: Flanged (Fixed or Swivel), Custom

• Application: Sand and Slurry Transport

• Certificates: CCS, ABS, BV, LR, KR, etc.

Description

Hongruntong Marine’s Discharge Hose is a heavy-duty, abrasion-resistant dredging hose engineered for reliable conveyance of sand, silt and slurry in cutter-suction and trailing-suction dredging, including trailing-suction hopper dredgers. This high-pressure hose delivers consistent flow and abrasion resistance in harsh marine dredging environments, making it ideal for high-throughput operations.

Constructed from multi-layer synthetic rubber with fabric and/or steel-wire reinforcement, the hose combines excellent flexibility, burst strength and wear resistance. Available in customizable diameters, lengths and pressure ratings, our discharge hose supports common connection types and quick-connect fittings to suit project specifications and ease on-site installation.

All hoses are factory-tested—pressure tested and abrasion-checked—to ensure dimensional accuracy and dependable performance, minimising downtime and maintenance. Typical applications include land reclamation, beach nourishment, barge and truck loading, sedimentation/dewatering systems, river/channel maintenance and sand/mineral transport.

We offer technical consultation, custom manufacturing and specification sheets to match your project needs.

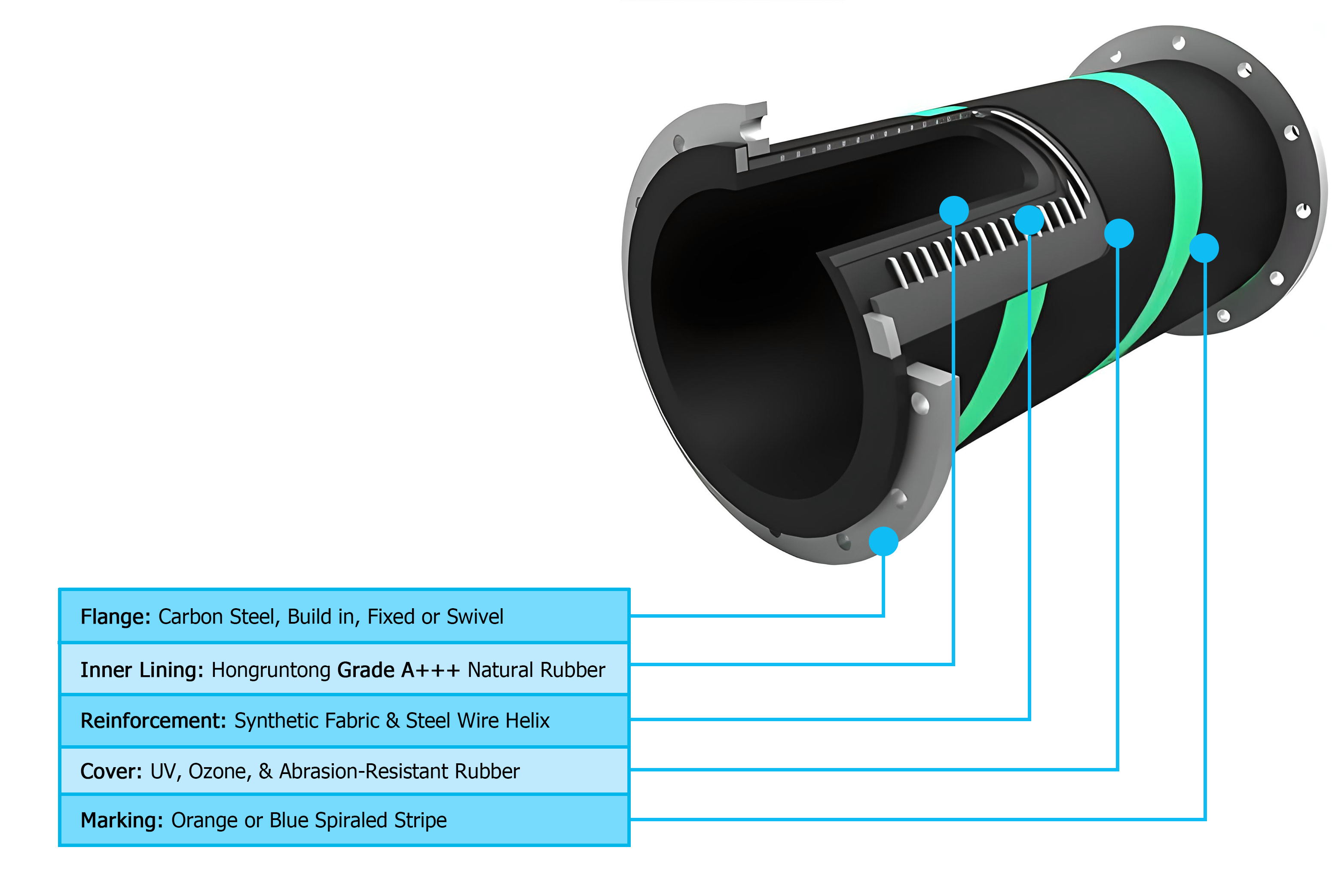

The Structures of Discharge Hoses

Hongruntong Marine’s Dredge Discharge Hose features a multi-layer construction optimized for high-pressure, high-abrasion dredging service: an abrasion-resistant inner rubber liner, one or more textile/steel-wire reinforcement plies for burst strength and flexibility, and a durable outer rubber cover engineered for UV and weather resistance. Options include additional wear linings (ceramic/ UHMW), steel-wire or fabric braid reinforcement, and a variety of end fittings (flanges, quick-connect couplings or custom mating faces) to suit project interfaces.

● Inner Lining: Hongruntong Grade A+++ Natural Rubber.

● Reinforcement: Multiple layers of high-strength High Tensile Synthetic Textile Cord or Steel Wire Helix.

● Outer Cover: Ozone, weather, UV, and abrasion-resistant neoprene rubber.

Applications

● Land reclamation and port expansion (sand transfer)

● Beach nourishment and coastal protection projects

● Barge, truck or shore unloading of dredged material

● Sedimentation ponds, dewatering systems and slurry transfer

● River and channel maintenance, navigation deepening

● Sand mining and high-density material transport

Dimensions

How Does The Discharge Hose Work?

The discharge hose transfers pressurised slurry from the dredge pump to the discharge endpoint. Pump-generated pressure pushes the mixed sand/slurry through the abrasion-resistant liner while the reinforcement layers sustain hoop and axial loads. The hose design balances flexibility (for routing and handling) with stiffness and burst resistance (for safe operation under continuous high flow). Factory pressure testing and abrasion checks verify the hose will maintain consistent flow and predictable wear rates under real-world dredging cycles.

● Manufacturer advantage — Direct OEM production by Hongruntong Marine (experienced dredging hose manufacturer), enabling competitive pricing and full customization.

● Engineered durability — Multi-layer compounds and optional wear liners extend service life in abrasive conditions.

● Proven quality control — Factory pressure and abrasion testing, dimensional inspections and traceable production records.

● Project-focused support — Specification assistance, custom end fittings, and timely technical guidance to match on-site requirements.

● Flexible manufacturing — Wide range of diameters, pressure ratings and lengths available to fit cutter-suction and trailing-suction dredgers.

Why Choose Hongruntong Marine's Discharge Hoses?

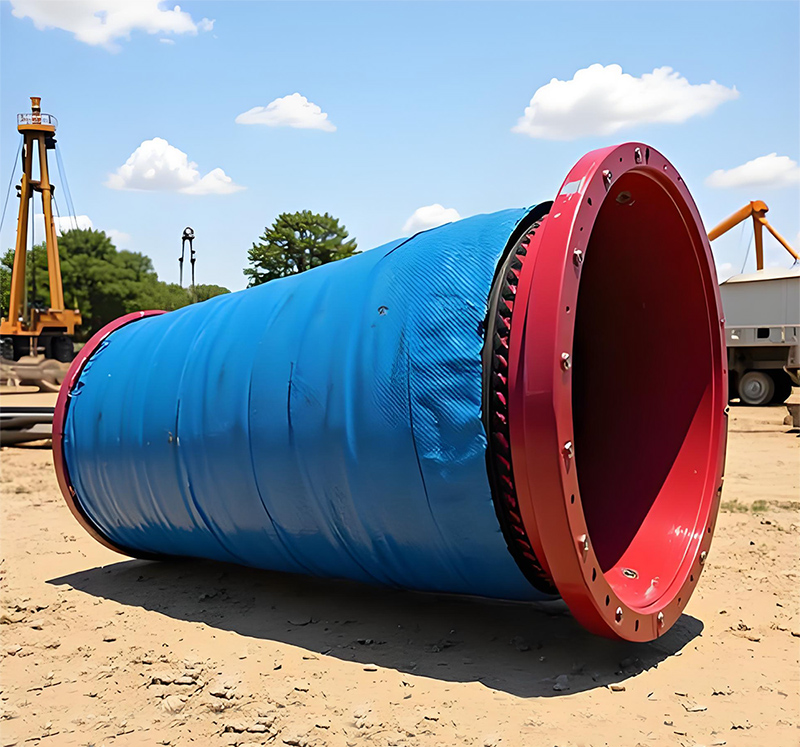

Products Photos
